PRODUCTS フットセンサ（ランニング時足裏圧分布測定装置）
シューズ内に装着できるインソールタイプのセンサにてランニング状態での足裏の圧力分布を測定します。測定データは無線にて収集、充実したソフトウェアで解析しシューズの開発等にご利用いただけます。
測定事例
インソールタイプのフットセンサ
Bluetooth通信とSDカードによる計測が可能

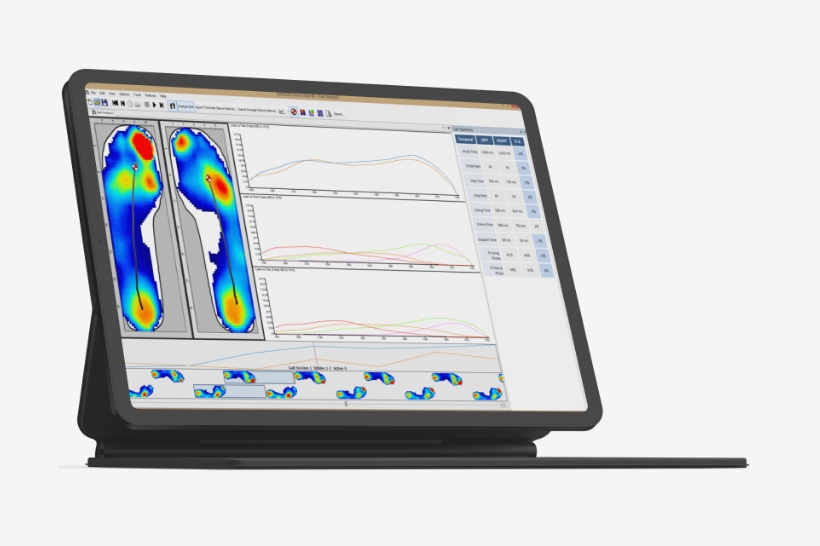

ランニング時の足裏圧分布計測例

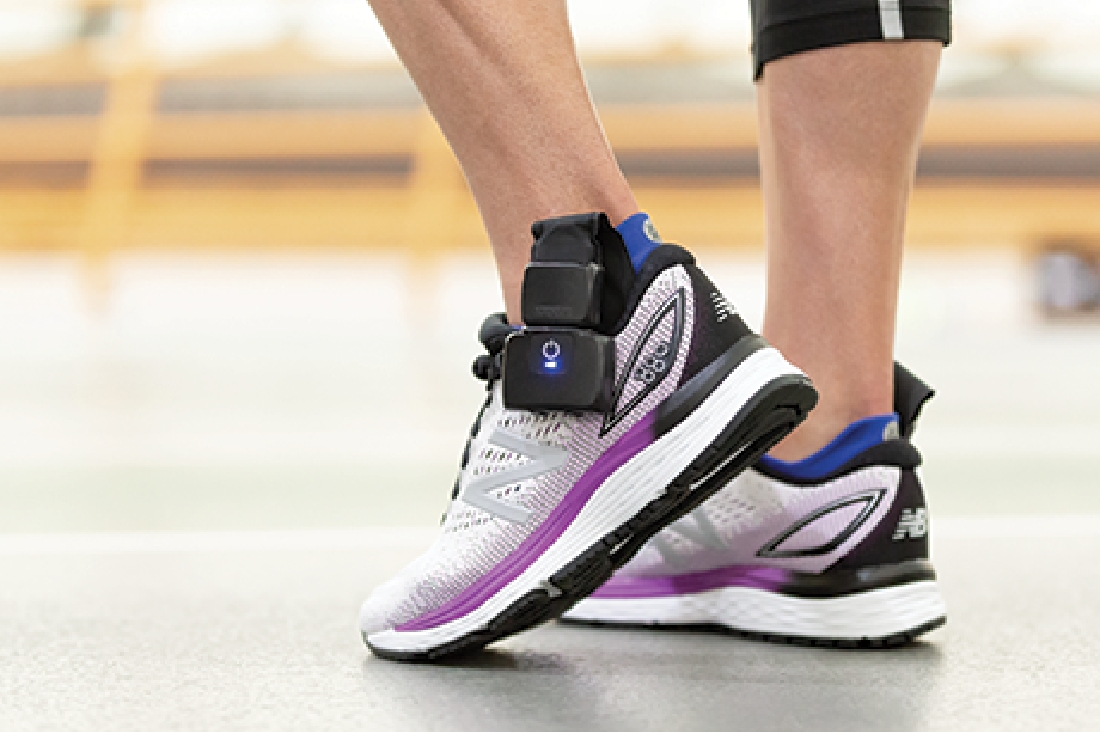

Bluetoothによるワイヤレス通信計測
仕様
| Intelligent Insoles | High-Resolution Sensor | Narrow Sensor | Lite Sensor | – | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Sensels/ Insole | 235 | 220 | 109 | – | |||||||
| Applications | For sports applications and clinical research in typical footwear. | For narrow footwear such as soccer cleats, skates, and others. | A more affordable option for clinical use. | – | |||||||

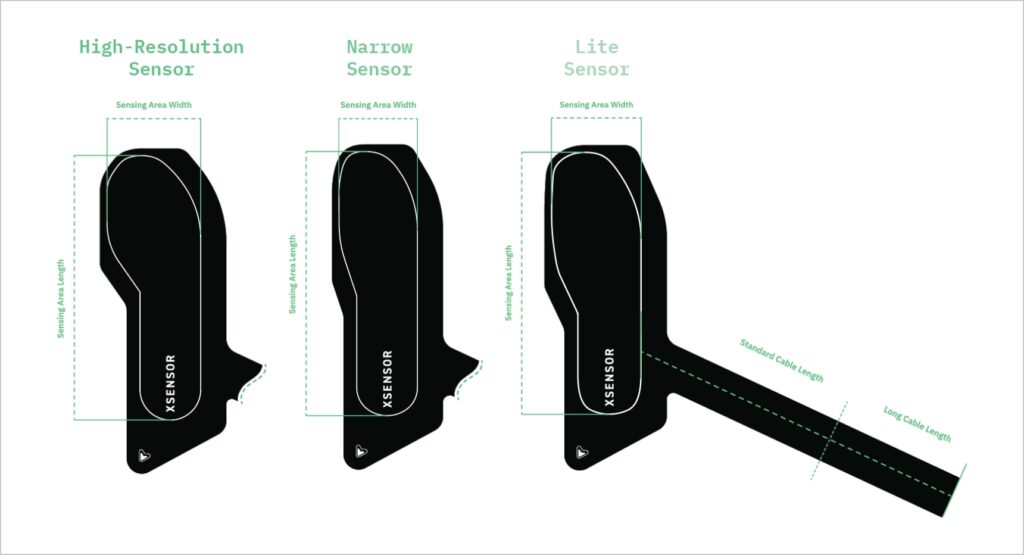

| Insole Sensor Size | Resolution (mm) | Sensing Area Width (cm) | Sensing Area Length (cm) | Resolution (mm) | Sensing Area Width (cm) | Sensing Area Length (cm) | Resolution (mm) | Sensing Area Width (cm) | Sensing Area Length (cm) | Standard Cable Length (cm) | Long Cable Length (cm) |
| XXS US 2-3 EU 33-34 | 6.4 | 7.08 | 19.95 | 6.4 | 5.79 | 19.95 | N/A | N/A | N/A | 17 | 30 |
| XS US 4-5 EU 36-37 | 7.0 | 7.68 | 21.64 | 7.0 | 6.28 | 21.64 | 10.0 | 7.01 | 21.02 | 18 | 31 |
| S US 6-7 EU 38-39 | 7.4 | 8.13 | 22.90 | 7.4 | 6.65 | 22.90 | 10.8 | 7.58 | 22.73 | 19 | 32 |
| M US 8-9 EU 41-42 | 8.0 | 8.80 | 24.80 | 8.0 | 7.20 | 24.80 | 11.6 | 8.11 | 24.32 | 20 | 33 |
| L US 10-11 EU 43-44 | 8.6 | 9.47 | 26.69 | 8.6 | 7.75 | 26.69 | 12.4 | 8.67 | 26.01 | 21 | 34 |
| XL US 12-13 EU 45-46 | 9.1 | 9.97 | 28.11 | 9.1 | 8.16 | 28.11 | 13.4 | 9.37 | 28.11 | 22 | 35 |
| XXL US 14-15 EU 47-48 | 9.4 | 10.30 | 29.05 | 9.4 | 8.43 | 29.05 | N/A | N/A | N/A | 23 | 36 |
| XXXL US 16-17 EU 49-50 | 10.0 | 11.03 | 31.10 | 10.0 | 9.03 | 31.10 | N/A | N/A | N/A | 24 | 37 |
| Pressure Range psi (n/cm2) | 1-128 (0.7-88.3) | ||||||||||
| Intelligent Insoles | Pediatric | Transmetatarsal Amputee | – | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Sensels/ Insole | 135 | 185 | – | ||||||
| Applications | Designed to fit pediatric patients’ sizes & meet their comfort levels. | For patients with decreased foot length and a lack of stability post-amputation. | – | ||||||
| Insole Sensor Size | Resolution (mm) | Sensing Area Width (cm) | Sensing Area Length (cm) | Insole Sensor Size | Resolution (mm) | Sensing Area Width (cm) | Sensing Area Length (cm) | Standard Cable Length (cm) | Long Cable Length (cm) |
| US 6C EU 21.0 | 5.4 | 4.89 | 11.40 | XS (US 4–5/ EU 36–37) | 6.9 | 7.68 | 17.45 | 18 | 31 |
| US 9.5C EU 25.5 | 6.5 | 5.86 | 13.66 | S (US 6–7/ EU 38–39) | 7.4 | 8.13 | 18.47 | 19 | 32 |
| US 12C EU 29.0 | 7.6 | 6.88 | 16.05 | M (US 8–9/ EU 41–42) | 8 | 8.80 | 20 | 20 | 33 |
| US 4.5Y EU 35.5 | 9.7 | 8.78 | 20.48 | L (US 10–11/ EU 43–44) | 8.6 | 9.47 | 21.52 | 21 | 34 |
| Standard Cable Length (cm) | 18 | XL (US 12–13/EU 45–46) | 9.1 | 9.97 | 22.67 | 22 | 35 | ||
| Pressure Range psi (n/cm2) | 1–128 (0.7–88.3) | Pressure Range psi (n/cm2) | 1–128 (0.7–88.3) | ||||||
| Intelligent Insoles | Dorsal | |||
|---|---|---|---|---|
| Sensels/ Insole | 180 sensels | 120 sensels | ||
| Applications | For clinical, research, or sports applications to measure the dorsal surface of the foot. | |||
| Insole Sensor Size | Sensing Area cm x cm (in x in) | Pressure Range psi (n/cm2) | Sensing Area cm x cm (in x in) | Pressure Range psi (n/cm2) |
| 6.35 x 11.43 (2.5 x 4.5) | LX210.10.18.04 0.1-15 (0.07–10.3) | 3.81 x 12.70 (1.5 x 5) | LX210.6.20.05 0.1-15 (0.07–10.3) | |
| PX100.10.18.04 0.1–3.87 (0.1-2.7) | PX100.6.20.05 0.1–3.87 (0.1-2.7) | |||
WALKWAY SENSOR SPECIFICATIONS
| SENSOR | |
|---|---|
| Accuracy | ±10% |
| Pressure Range | 1-128 psi, 0.67-88 N/cm2 |
| Resolution | 0.5″ / 1.27 cm |
| Sampling Frame Rate | 40 frames/second |
| PHYSICAL CHARACTERISTICS | |
|---|---|
| Total Area | 104″ x 28″ / 264 x 71 cm |
| Sensing Area | 95″ x 20″/243 x 51 cm |
| Thickness (Uncompressed sensing area) | 0.06″/1.5 mm |
STANCE PAD SENSOR SPECIFICATIONS
| SENSOR | |
|---|---|
| Accuracy | ±10% |
| Pressure Range | 1-100 psi, 0.67-68 N/cm2 |
| Resolution | 0.25″ / 6.35 cm |
| Sampling Frame Rate | 24 frames/second |
| PHYSICAL CHARACTERISTICS | |
|---|---|
| Total Area | 22.5″ x 22.5″ / 57 x 57 cm |
| Sensing Area | 16″ x 16″/41 x 41 cm |
| Thickness (Uncompressed sensing area) | 0.06″/1.5 mm |
技術文献
よくあるご質問
デモは可能ですか？
はい。デモ用センサには限りがございますが、なるべくご要望に近いセンサをお持ちしてデモをご覧頂くことが可能です。
レンタルは可能ですか？
申し訳ありませんが、レンタルはお受けいたしかねます。
校正証明書は発行されますか？
はい。各面圧センサにISO/IEC17025認定の校正証明書をお付けします。
特注センサは製作可能ですか？
はい。基本的に四角形状に限定されますが、特注センサも承っております。お気軽にご相談ください。
