HS Impact provides the ability to test:
○ Helmets
○ Protective Equipment
○ Ballistics

Measure Product Safety and Performance

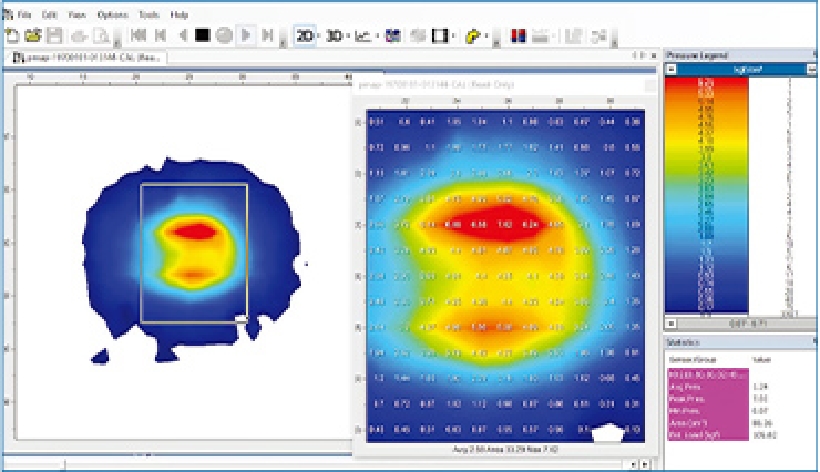

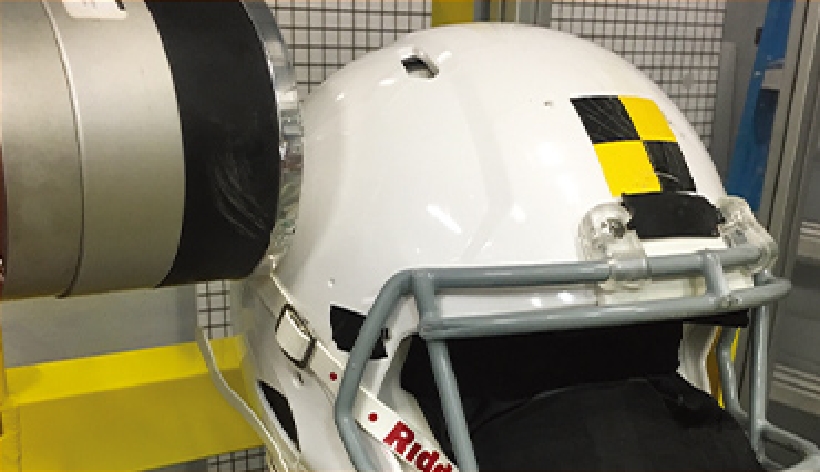

Evaluating the performance of helmets and other protective equipment designed to prevent injury requires detailed understanding of the pressure distribution on the body surface during dynamic impacts. XSENSOR’s high speed HS Impact system combined with our thin conformable sensors allow you to accurately measure those pressures and evaluate how different design configurations affect pressure distribution on impact.

Acquiring accurate pressure information during sudden impacts requires fast and responsive pressure imaging sensors combined with powerful software tools. HS Impact provides detail on surface pressures before, at, and after impact, allowing engineers to isolate issues and implement effective changes that can then be measured and repeated. Our accurate and reliable sensors measure accurately with repeated impacts without recalibration.

* Frames per second refers to the actual number of frames of data recorded and those can be viewed with the software. Frame rates estimated using the HS Controller in data logging mode.

---

HS Impact Features

HX Sensors

• Thousands of high resolution sensing points
• Fast frequency response (3dB point >100Hz)
• Lightweight, highly flexible sensors are less than 1mm thick
• Available in a range of sizes, pressure ranges and resolutions

HS Pro V8 Software

• Establishes recording rates and synchronization protocols to generate high speed data acquisition
• Data files recorded to the data logger are downloaded and configured for viewing and analysis
• View data live at frame rates exceeding 1,000 fps (with an Ethernet connection from the data logger)

HS Data Logger

• Detects user defined trigger condition
• Records data from up to 4 sensor packs to and up to a total 256 x 256 sensing array
• Operates in either streaming via Ethernet from high speed recording internal RAM
• Programmable triggers and pre/post-trigger information (both external signal or pressure threshold triggers are supported)
• Supports autonomous operation
• Rugged electronics, tested at over 50G with no failure

HS Sensor Pack

• Scans sensor data at up to 8,000,000 sensels/second with 16 bit resolution
• Connects directly to the controller via LVDS signals

About XSENSOR

XSENSOR has been a leading provider of pressure sensors for more than 20 years. The company’s X3 PRO sensors are used in variety of automotive applications including seat design, tire design, wiper design and more.

---

October 2018 DOC-03-00026
