フットセンサ圧力分布測定 X4 Intelligent Insole System Human Performance Measurement
KEY BENEFITS
CAPTURE NATURAL GAIT
Insole sensor technology built for use in the real world. Get high-resolution plantar pressure data to measure foot and gait function—wherever activity takes place.
LAB QUALITY DATA
Industry-leading sensor technology provides accurate, reliable, and repeatable data with outstanding image quality.
EFFICIENT DATA COLLECTION
Measure natural gait motion in the field with confidence. Reliable sensors, electronics and software can be set-up in minutes—and with no recalibration needed, you can focus your time on collecting and analyzing valuable data.
Better performance leads to better results.
It can be challenging to measure plantar pressure and analyze gait accurately, consistently, and in the environments where activity normally takes place: outside of the lab. In the past, capturing natural gait has been limited because current products are not suited for real-world testing.
The X4 Intelligent Insole is a plantar pressure and gait measurement system for athletic coaches and clinicians that captures lab-quality biomechanical and human performance data in the field.
- Wireless, compact on-shoe electronics and undetectable sensors simplify data collecton in long duration, multi-participant studies, and evaluation of patients with limited mobility.
- Durable construction and factory calibration means the sensors are reliable for continuous use in research and sports performance testing.
- Accurate, repeatable sensors—plus high resolution data and high speed collection with integrated IMU capability—provide rich datasets for analysis.
- Advanced AI-powered gait analysis tools provide insights for human performance or biomechanics research.
X4 INTELLIGENT INSOLE SYSTEM SPECIFICATIONS
| INSOLE SENSOR | |
|---|---|
| Accuracy | +/- 5% |
| Thickness | < 0.2 mm |
| Pressure Range | 1-128 psi, kPa |
| Resolution | 5mm (230 sensels/sensor) |
| ELECTRONICS – ON-SHOE | |
|---|---|
| Sampling Rate | 150 hz |
| Wireless | Bluetooth |
| Memory | 16 GB (7.5 hrs recording) |
| Size | 1.7 cm x 4 cm x 5.5 cm |
| Weight | 42 g |
| SENSOR SIZING | ||||||
|---|---|---|---|---|---|---|
| XXS | XS | S | M | L | XL | |
| Men | 2/3 | 4/5 | 6/7 | 8/9 | 10/11 | 12/13 |
| Women | 4/5 | 6/7 | 8/9 | 10/11 | 12/13 | N/A |
| EU | N/A | 36/37 | 39/40 | 41.5/43 | 44/45 | 46.5+ |

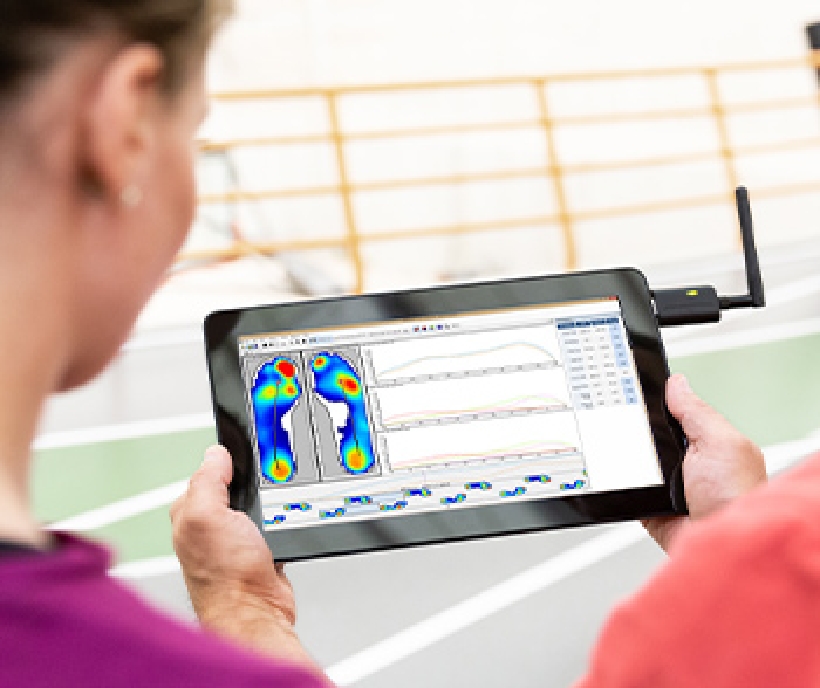

PRO FOOT & GAIT SOFTWARE
Desktop software and companion app provide flexible recording options and comprehensive tools for biomechanics professionals who are interested in conducting detailed analyses. Highest quality visualizations, graphing and detailed statistics reveal insights into gait function. Export options support external analysis for large data sets.
| SOFTWARE | |
|---|---|
| Android App | • Preview • Record • Download |
| Desktop Software | • 2D or 3D images • Pressure/load vs. time graphs • Flexible zone configuration • CoP, gait lines & cyclogram • Auto gait analysis • Compare files • Flexible export options • Video sync • Customizable reports • Complete gait statisics |
OUR PLATFORM
INTELLIGENT DYNAMIC SENSING
The platform behind our human performance products, Intelligent Dynamic Sensing (IDS) enables precise measurements and features highly detailed visualizations and smart data with AI-powered analysis — resulting in optimized performance, comfort and safety.
Maximum performance sensing
Real-time data measurement and
highest quality visualizations
AI-powered data analysis and
optimization
